Phytobacteriology, the study of bacteria that cause diseases in plants, plays a critical role in understanding the significant impact these pathogens have on agriculture, including economic losses and threats to food security.

Phytopathogenic Bacteria in Plants, which include around 100 species of bacteria, approximately 1,000 known species of viruses, 10,000 to 15,000 species of fungi, and several hundred species of nematodes, are responsible for a wide range of plant diseases. Exploring their structure, transmission mechanisms, and the diseases they cause is essential for developing effective methods for their detection and control, ultimately safeguarding agricultural productivity.

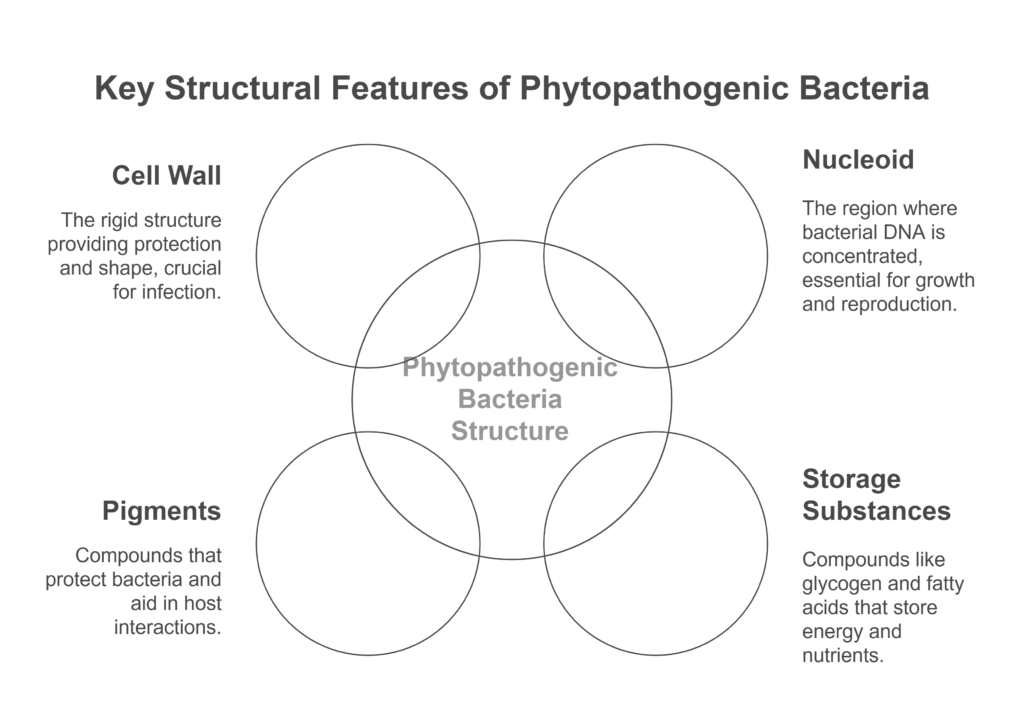

Structure and Composition of Phytopathogenic Bacteria

Phytopathogenic bacteria are prokaryotic microorganisms that lack a true nucleus and other membrane-bound organelles, distinguishing them structurally from eukaryotic cells. Despite their simplicity, these bacteria possess various specialized features that enable them to survive, reproduce, and interact with their plant hosts effectively.

a). Nucleoid

The bacterial DNA is concentrated in a region known as the nucleoid, which is not enclosed by a membrane. This DNA exists in a circular form and contains the genetic instructions necessary for the bacteria’s growth, reproduction, and pathogenicity.

b). Storage Substances

These bacteria store energy and nutrients in the form of specialized substances such as glycogen, fatty acids, and polyphosphates. Glycogen serves as a carbohydrate reserve, fatty acids function as energy storage molecules, and polyphosphates are involved in stress responses and energy metabolism, ensuring bacterial survival under adverse conditions.

c). Pigments

Phytopathogenic bacteria produce various pigments, including carotenoids, anthocyanins, and quinoids. These pigments play diverse roles, such as protecting the bacteria from oxidative stress, facilitating interactions with the host, and contributing to the bacteria’s virulence by promoting survival in hostile environments.

d). Cell Wall

The cell wall is a vital structural component composed of peptidoglycan, a polymer consisting of repeating units of N-acetylglucosamine and N-acetylmuramic acid linked by peptide bridges. This rigid layer provides structural integrity, shapes the bacterial cell, and protects it from osmotic pressure and mechanical stress. The composition of the cell wall also plays a crucial role in the bacteria’s ability to infect and interact with plant hosts, making it a key target for disease control strategies.

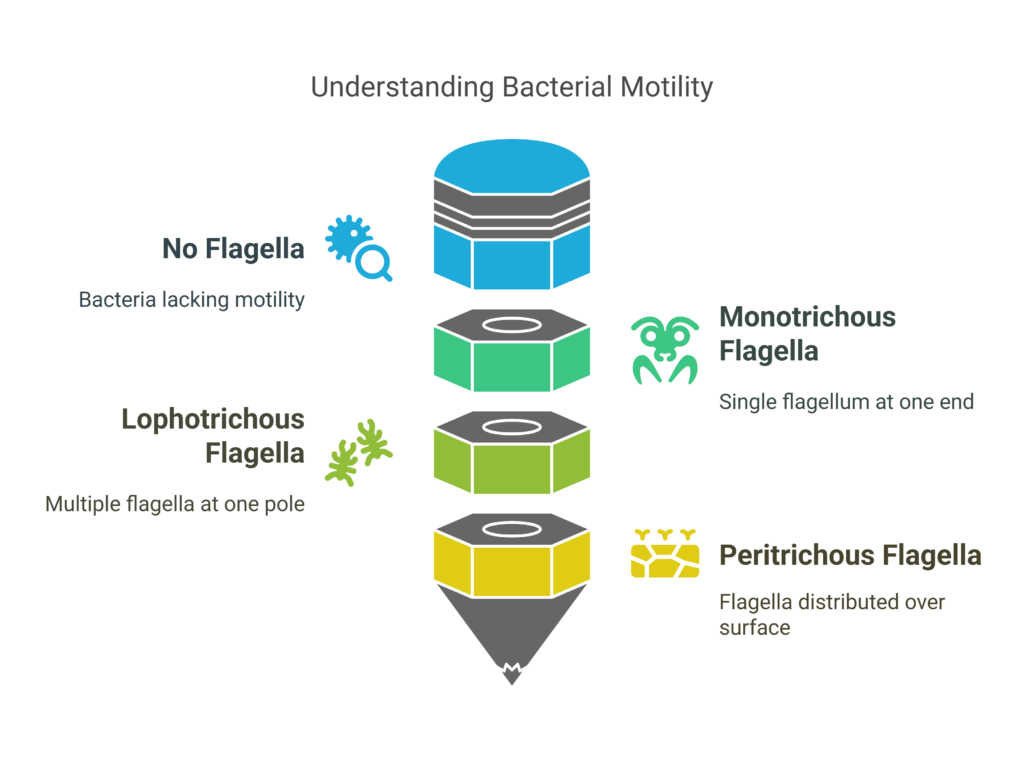

Flagella Arrangement in Bacteria

Flagella are whip-like appendages that play a crucial role in bacterial motility, allowing bacteria to navigate their environment, seek nutrients, or evade unfavorable conditions. The arrangement of flagella on a bacterial cell varies across species and is a key characteristic for identification and understanding bacterial behavior. The different types of flagellar arrangements include:

a). No Flagella (Non-motile Bacteria)

Some bacteria lack flagella entirely and are non-motile. These bacteria rely on passive mechanisms, such as water currents or host movements, to reach favorable environments. Non-motile bacteria are often adapted to stable niches where active movement is not essential for survival.

b). Monotrichous Flagella

In this arrangement, a single flagellum is present at one end (polar) of the bacterial cell. This type of flagellation enables the bacteria to move in a straightforward manner, usually with a spinning motion. Monotrichous flagella are commonly observed in bacteria that need swift and directed motility, such as Vibrio cholerae.

c). Lophotrichous Flagella

Bacteria with lophotrichous flagellation have multiple flagella clustered at one pole of the cell. This arrangement allows for greater motility compared to a single flagellum, as the bundled flagella work together to generate a stronger propulsive force. Lophotrichous bacteria often exhibit swift and highly controlled movements, making them effective at navigating their environments.

d). Peritrichous Flagella

In this arrangement, flagella are distributed uniformly over the entire surface of the bacterial cell. This configuration provides versatility, enabling the bacteria to move in multiple directions. Peritrichous bacteria, such as Escherichia coli, exhibit a combination of “runs” and “tumbles,” alternating between forward movement and directional changes to adapt to environmental cues effectively.

Each flagellar arrangement reflects the ecological adaptation and lifestyle of the bacteria, influencing their ability to colonize hosts, evade immune responses, or survive in diverse environments. Understanding flagellar arrangements is essential in studying bacterial motility and their interactions with plant or animal hosts.

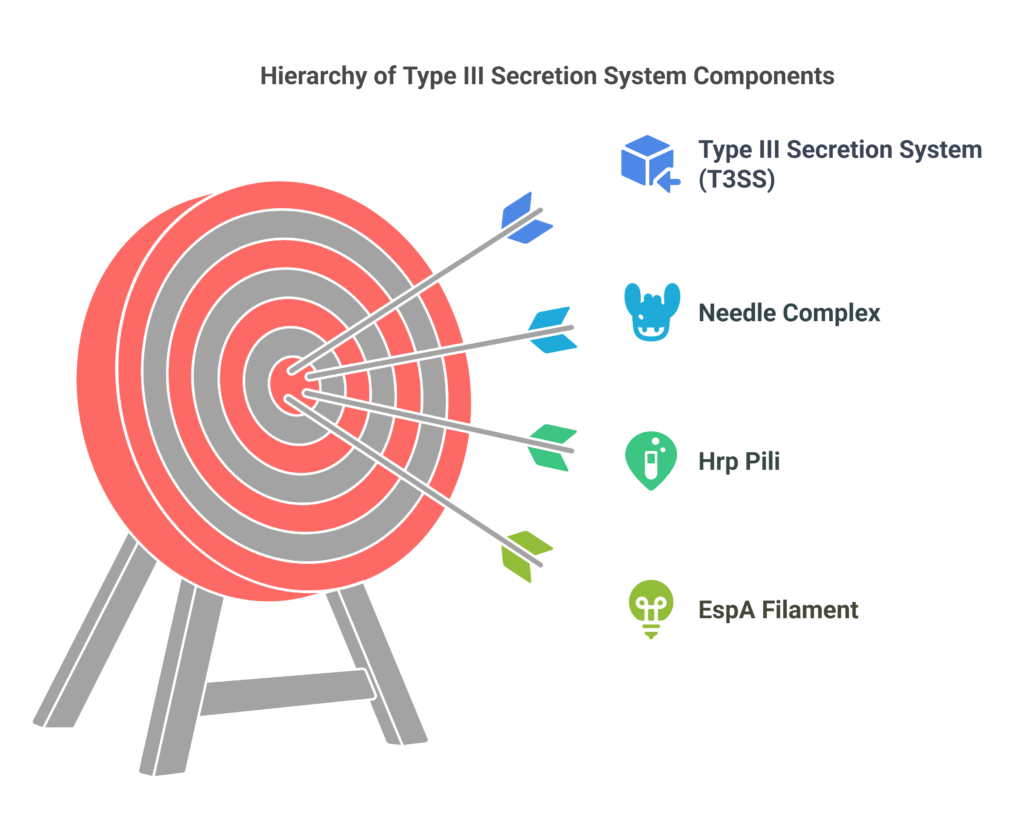

Bacterial Secretion Systems

Bacterial secretion systems are complex molecular machines that enable bacteria to interact with their surroundings and host cells by transporting various molecules, including proteins and virulence factors, across cellular membranes. These systems are vital for bacterial survival, adaptation, and pathogenicity, particularly in the context of host-pathogen interactions. Below is an elaboration of key secretion systems, particularly those associated with the Type III Secretion System (T3SS):

a). Flagellar Type III Secretion System (T3SS)

The T3SS associated with bacterial flagella plays a dual role. It is crucial for the assembly of the flagellar apparatus, facilitating motility, and also for exporting proteins during its construction. Flagella are not only important for movement but also for bacterial colonization and host invasion, making this secretion system essential for both motility and virulence.

b). Needle Complex of T3SS

This specialized component of the T3SS is a syringe-like structure used by pathogenic bacteria to inject virulence factors directly into host cells. These virulence factors, often referred to as effectors, manipulate host cell processes to favor bacterial survival and replication. The needle complex is a hallmark of many human and plant bacterial pathogens, such as Salmonella and Pseudomonas syringae.

c). Hrp Pili of T3SS

The Hrp (hypersensitive response and pathogenicity) pili are a specialized form of the T3SS used predominantly by plant pathogens. These structures are adapted to penetrate plant cell walls and deliver effector proteins into plant cells. These effectors interfere with the plant’s immune response, allowing the pathogen to establish infection or suppress plant defenses. Examples of pathogens employing Hrp pili include Xanthomonas and Ralstonia species.

d). T3SS Filament for EspA

The EspA filament is another specialized structure of the T3SS, particularly seen in enteropathogenic bacteria like Escherichia coli. This filament acts as a conduit for delivering effector proteins into host cells. These effectors disrupt normal host cell functions, such as cytoskeletal dynamics and immune signaling, enabling the pathogen to adhere to and colonize the host.

These secretion systems are highly evolved and represent critical adaptations for bacterial survival and virulence. They allow bacteria to manipulate host cell processes, evade immune defenses, and establish infections in plants, animals, or humans. Understanding these systems is fundamental for developing strategies to mitigate bacterial diseases in both agricultural and clinical settings.

Key Components of Bacterial Cells

Bacterial cells are structurally simpler than eukaryotic cells but possess all the necessary components to carry out essential life processes. These components allow bacteria to survive, grow, and adapt to diverse environments. Below is an elaboration of the key components found in bacterial cells:

a). Chromosome

The bacterial chromosome is typically a single, circular molecule of DNA that contains the genetic information required for the cell’s growth, reproduction, and function. Unlike eukaryotic cells, bacterial chromosomes are not enclosed in a nucleus but are located in a region called the nucleoid.

b). Plasmid

Plasmids are small, circular, double-stranded DNA molecules that exist independently of the chromosome. They often carry genes that confer advantageous traits, such as antibiotic resistance, toxin production, or metabolic capabilities, and can be transferred between bacteria through horizontal gene transfer.

c). Cytoplasm

The cytoplasm is a gel-like matrix that fills the interior of the bacterial cell. It is the site of various metabolic activities, including enzymatic reactions, and houses essential cellular components such as ribosomes, inclusions, and nucleoids.

d). Ribosomes

Ribosomes are small, protein-synthesizing structures composed of RNA and proteins. Bacterial ribosomes (70S) are smaller than eukaryotic ribosomes (80S) and are the sites where messenger RNA (mRNA) are translated into proteins.

e). Inclusion

Inclusions are storage granules within the cytoplasm that store nutrients or energy reserves, such as glycogen, polyphosphate, sulfur, or polyhydroxybutyrate. These reserves can be used when nutrients are scarce.

f). Flagellum

The flagellum is a whip-like appendage responsible for bacterial motility. It is composed of the protein flagellin and enables bacteria to move toward favorable conditions or away from harmful stimuli through a process called chemotaxis.

g). Pilus (Fimbria)

Pili or fimbriae are hair-like structures on the bacterial surface. They are primarily involved in adhesion to surfaces, host cells, or other bacteria. Some specialized pili, such as conjugative pili, facilitate the transfer of genetic material between bacterial cells during conjugation.

h). Capsule or Slime Layer

Many bacteria are surrounded by a capsule or slime layer composed of polysaccharides or proteins. This protective outer layer helps bacteria evade host immune responses, prevent desiccation, and adhere to surfaces, forming biofilms.

i). Cell Wall

The bacterial cell wall provides structural support and maintains the shape of the cell. It is primarily composed of peptidoglycan, a polymer of sugars and amino acids, and differs in composition between Gram-positive and Gram-negative bacteria, influencing their staining properties and resistance to antibiotics.

j). Cell Membrane

The cell membrane, also known as the plasma membrane, is a phospholipid bilayer with embedded proteins that control the movement of substances into and out of the cell. It plays a crucial role in energy generation, nutrient transport, and maintaining the cell’s internal environment.

Together, these components work in harmony to ensure the survival, adaptability, and reproduction of bacterial cells, enabling them to thrive in a wide range of environmental conditions. Understanding these components is critical for developing strategies to control bacterial infections and harness their beneficial applications in medicine, agriculture, and industry.

Gram Staining Process and Cell Wall Structures

The Gram staining process is a fundamental technique in microbiology used to classify bacteria into two major groups: Gram-positive and Gram-negative. This differentiation is based on the structure and composition of the bacterial cell wall, which influences their staining properties during the procedure. Below is an elaboration of the steps involved and the structural differences between Gram-positive and Gram-negative bacteria.

Gram Staining Process

a). Fixation

The bacterial sample is smeared onto a glass slide and heat-fixed. This step kills the bacteria and attaches them firmly to the slide, preventing them from being washed away during the staining process.

b). Application of Crystal Violet

The slide is flooded with crystal violet, a purple dye that acts as the primary stain. This dye penetrates the cell walls of both Gram-positive and Gram-negative bacteria, coloring all cells initially.

c). Iodine Treatment

A mordant, iodine solution, is applied to the slide. Iodine forms a complex with crystal violet, creating a larger, insoluble compound (crystal violet-iodine complex) that becomes trapped within the bacterial cell wall, especially in Gram-positive bacteria.

d). Decolorization

A decolorizing agent, usually alcohol or acetone, is applied. This step is critical for distinguishing between Gram-positive and Gram-negative bacteria:

• In Gram-positive bacteria, the thick peptidoglycan layer retains the crystal violet-iodine complex, and the cells remain purple.
• In Gram-negative bacteria, the thinner peptidoglycan layer and the presence of an outer membrane allow the crystal violet-iodine complex to be washed out, rendering the cells colorless.

e). Counter Stain

The slide is stained with a counterstain, such as safranin. This stain colors the decolorized Gram-negative bacteria pink or red, while Gram-positive bacteria retain their purple color due to the retained crystal violet stain.

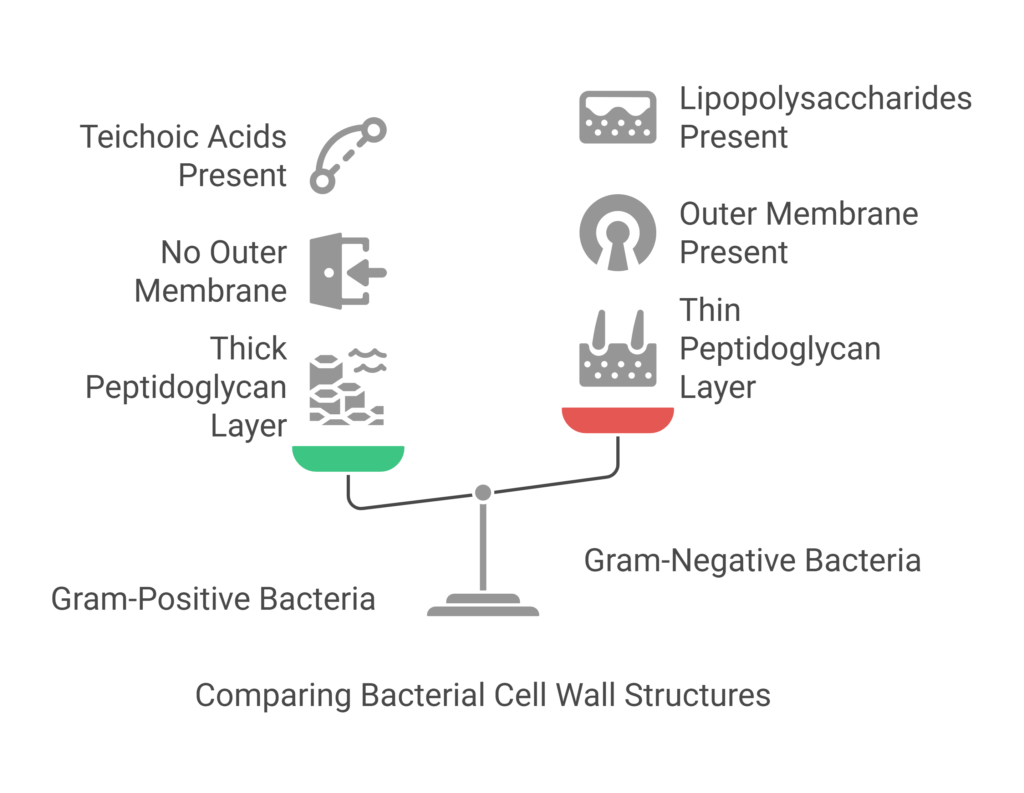

Cell Wall Structures of Gram-positive and Gram-negative bacteria

a). Gram-Positive Bacteria

• Thick Peptidoglycan Layer: The thick layer of peptidoglycan that makes up Gram-positive bacteria’s cell walls gives them structural strength and traps the crystal violet-iodine combination.
• Teichoic Acids: These are polymers of glycerol or ribitol phosphate embedded in the peptidoglycan layer, contributing to cell wall integrity and providing antigenic properties.
• Lipoteichoic Acids: Similar to teichoic acids but anchored to the cell membrane, they play a role in maintaining the cell’s structural stability.

b). Gram-Negative Bacteria

• Thin Peptidoglycan Layer: Gram-negative bacteria have a significantly weaker peptidoglycan layer on their cell walls, which is insufficient to hold onto the crystal violet-iodine complex while it is being decolorized.
• Outer Membrane: This additional lipid bilayer contains lipopolysaccharides (LPS), which contribute to the structural complexity of Gram-negative bacteria and serve as endotoxins that can trigger immune responses in hosts.
• Porin Proteins: These proteins form channels in the outer membrane, allowing the selective passage of small molecules.
• Periplasmic Space: The space between the outer membrane and the inner cytoplasmic membrane houses enzymes and transport proteins involved in nutrient acquisition and metabolism.

Understanding the Gram staining process and the structural differences between bacterial cell walls is essential for microbiological diagnostics, guiding the selection of appropriate antibiotics, and studying bacterial physiology. Gram-positive and Gram-negative bacteria respond differently to antibiotics due to these structural variations, making this distinction critical in medical and research contexts.

Diversity of Phytopathogenic Bacteria of Plants

 Bacteria exhibit remarkable diversity, classified into distinct kingdoms based on structural, functional, and genetic characteristics. Two major groups are Proteobacteria (Gram-negative bacteria) and Gram-positive bacteria, each containing numerous subgroups with unique traits and ecological roles.

Kingdom I: Proteobacteria (Gram-Negative Bacteria)

Proteobacteria represent a highly diverse group of bacteria, including many pathogens, symbionts, and free-living species. They share the characteristics of having a Gram-negative cell wall structure. This kingdom comprises the following subgroups:

a). Purple Phototrophic Bacteria: Capable of photosynthesis using light as an energy source.

b). Nitrifying Bacteria: Play a critical role in the nitrogen cycle by oxidizing ammonia to nitrate.

c). Sulfur- and Iron-Oxidizing Bacteria: Utilize sulfur or iron compounds as energy sources.

d). Hydrogen-Oxidizing Bacteria: Oxidize hydrogen for energy, often thriving in extreme environments.

e). Methanotrophs and Methylotrophs: Specialize in metabolizing methane and other one-carbon compounds.

f). Pseudomonas and Pseudomonads: Metabolically versatile, often found in soil and water ecosystems.

g). Acetic Acid Bacteria: Known for their role in vinegar production through ethanol oxidation.

h). Free-Living Aerobic Nitrogen-Fixing Bacteria: Convert atmospheric nitrogen into a bioavailable form for plants.

i). Enterobacteriaceae: A family of bacteria that includes several medically significant pathogens like Escherichia coli and Salmonella.

j). Vibrio and Photobacterium: Found in aquatic environments, with some species bioluminescent.

k). Rickettsias: Obligate intracellular parasites, often associated with arthropods.

l). Spirilla: Helical-shaped bacteria, including those with specialized motility.

m). Sheathed Proteobacteria: Encased in protective sheaths, often found in aquatic environments.

n). Budding and Prosthecate/Stalked Bacteria: Unique bacteria with appendages or stalk-like structures.

o). Gliding Myxobacteria: Capable of coordinated movement and forming multicellular fruiting bodies.

p). Sulfate- and Sulfur-Reducing Proteobacteria: Anaerobic bacteria that reduce sulfur compounds, playing a vital role in sulfur cycling.

Kingdom II: Gram-Positive Bacteria

Gram-positive bacteria are distinguished by their thick peptidoglycan cell walls, which retain the primary stain in Gram staining. They encompass various subgroups with diverse structural and metabolic features:

a). Non-Sporulating, Low GC: Gram-positive bacteria with low guanine-cytosine (GC) content that do not form spores.

b). Endospore-Forming, Low GC: Includes species like Bacillus and Clostridium that produce durable spores for survival under harsh conditions.

c). Mycoplasmas: Gram-positive bacteria lacking a cell wall, characterized by low GC content and high flexibility.

d). High GC: Gram-positive bacteria with high guanine-cytosine content in their DNA, known for metabolic diversity.

e). Actinomycetes: Filamentous, high GC bacteria, including species like Streptomyces, renowned for antibiotic production.

This vast bacterial diversity highlights the adaptability and ecological significance of these microorganisms across various habitats and processes, from nutrient cycling to disease causation and industrial applications.

Classification and Significance of Phytopathogenic Bacteria in Plant

Phytopathogenic bacteria are microorganisms that cause diseases in plants, leading to significant agricultural losses and impacting food security. These bacteria are classified based on their Gram-staining properties, cell wall structure, and other morphological and biochemical characteristics. Below is an elaboration of the classification of phytopathogenic bacteria, along with their significance in plant pathology:

Gram-Negative Bacteria

Gram-negative bacteria have a thin peptidoglycan layer surrounded by an outer membrane containing lipopolysaccharides (LPS). They are often associated with a wide range of plant diseases. Key genera include:

a). Pseudomonas

• Characteristics: Aerobic, rod-shaped bacteria known for their metabolic versatility.
• Diseases: Cause diseases like bacterial leaf spots, blights, and cankers. Example: Pseudomonas syringaecauses bacterial speck in tomatoes and halo blight in beans.

b). Acidovorax

• Characteristics: Aerobic, motile rods.
• Diseases: Acidovorax avenaecauses bacterial stripes in cereals and orchids.

c). Burkholderia

• Characteristics: Rod-shaped, often found in soil and water.
• Diseases: Burkholderia glumaecauses bacterial panicle blight in rice.

d). Ralstonia

• Characteristics: Aerobic, rod-shaped bacteria.
• Diseases: Ralstonia solanacearumcauses bacterial wilt in tomatoes, potatoes, and bananas.

e). Xanthomonas

• Characteristics: Aerobic, rod-shaped bacteria with yellow pigmentation.
• Diseases: Cause leaf spots, blights, and cankers. Example: Xanthomonas campestriscauses black rot in crucifers.

f). Xylella

• Characteristics: Fastidious, xylem-limited bacteria.
• Diseases: Xylella fastidiosacauses Pierce’s disease in grapes and citrus variegated chlorosis.

g). Agrobacterium

• Characteristics: Rod-shaped, soil-borne bacteria.
• Diseases: Agrobacterium tumefacienscauses crown gall disease in a wide range of plants.

h). Erwinia

• Characteristics: Facultative anaerobes, rod-shaped.
• Diseases: Cause soft rot, fire blight, and wilts. Example: Erwinia amylovoracauses fire blight in apples and pears.

Gram-Positive Bacteria

Gram-positive bacteria have a thick peptidoglycan layer without an outer membrane. They are less common as phytopathogens but still play a significant role in plant diseases. Key genera include:

a). Corynebacterium

• Characteristics: Club-shaped, aerobic bacteria.
• Diseases: Corynebacterium michiganensecauses bacterial canker in tomatoes.

b). Arthrobacter

• Characteristics: Soil-dwelling, rod-shaped bacteria.
• Diseases: Rarely pathogenic but can cause minor plant infections.

c). Clavibacter

• Characteristics: Rod-shaped, aerobic bacteria.
• Diseases: Clavibacter michiganensiscauses bacterial wilt and canker in tomatoes.

d). Curtobacterium

• Characteristics: Curved, rod-shaped bacteria.
• Diseases: Curtobacterium flaccumfacienscauses bacterial wilt in beans.

e). Rathayibacter

• Characteristics: Rod-shaped, soil-borne bacteria.
• Diseases: Rathayibacter toxicuscauses annual ryegrass toxicity.

f). Rhodococcus

• Characteristics: Aerobic, pleomorphic bacteria.
• Diseases: Rhodococcus fascianscauses leafy gall disease in ornamentals and vegetables.

C). Actinomycetes

Actinomycetes are Gram-positive bacteria with filamentous growth, resembling fungi. They are primarily soil-dwelling and play a role in decomposing organic matter.

a). Streptomyces

• Characteristics: Filamentous, spore-forming bacteria.
• Diseases: Streptomyces scabiescause common scab in potatoes.

D). Mollicutes

Mollicutes are a class of bacteria that lack a cell wall and are obligate parasites. They are often associated with plant diseases and are transmitted by insect vectors.

a). Phytoplasma

• Characteristics: Cell wall-less, pleomorphic bacteria.
• Diseases: Cause yellows, witches’ broom, and stunting in plants. Example: Aster yellows phytoplasma affects a wide range of plants.

b). Spiroplasma

• Characteristics: Helical, cell wall-less bacteria.
• Diseases: Spiroplasma citricauses citrus stubborn disease.

Importance of Understanding Phytopathogenic Bacteria

Understanding the structure, classification, and mechanisms of phytopathogenic bacteria is critical for several reasons:

a). Disease Diagnosis

Accurate identification of bacterial pathogens helps in diagnosing plant diseases and implementing targeted control measures.

b). Disease Management

Knowledge of bacterial biology and pathogenesis mechanisms aids in developing effective management strategies, such as resistant plant varieties, chemical treatments, and cultural practices.

c). Agricultural Productivity

Controlling bacterial diseases ensures healthy crop growth, leading to higher yields and improved food security.

d). Sustainable Agriculture

Understanding these pathogens helps in developing eco-friendly and sustainable disease control methods, reducing reliance on chemical pesticides.

By studying the classification and behavior of phytopathogenic bacteria, researchers and agricultural professionals can develop innovative solutions to mitigate their impact on crops, ensuring global food security and sustainable agricultural practices.

Understanding the Transmission of Phytopathogenic Bacteria in plants

Phytopathogenic bacteria are a significant threat to agriculture, causing a wide range of diseases that can lead to substantial economic losses. Understanding how these bacteria spread, the symptoms they cause, and the methods to control them is crucial for effective plant disease management. This blog post delves into the transmission, symptoms, and control strategies for bacterial plant pathogens.

Bacteria can spread from plant to plant through various means, including water, insects, and human activities. Rainwater can translocate bacteria from soil to plants, while irrigation water can carry bacteria from one area to another. Insects act as vectors, transporting and inoculating bacteria through suitable entry points on plants. Additionally, human activities, such as cutting plants or transporting infected plants and seeds, can inadvertently spread bacteria, contributing to the distribution and inoculation of bacterial pathogens in agricultural and natural environments.

The distribution of bacteria and fungi in agricultural settings is a complex process influenced by various natural and human-mediated mechanisms. These pathogens can spread through multiple pathways, each contributing to the potential for disease outbreaks and the challenges of managing plant health. Below is an elaboration of the methods that facilitate the spread of bacteria and fungi:

A). Wind

• Mechanism: Wind is a powerful agent for dispersing fungal spores and lightweight bacterial cells over long distances.
• Impact: Pathogens like rusts, powdery mildews, and bacterial blights can travel far from their source, infecting plants in distant fields.
• Example: Spores of Puccinia graminis, the causal agent of wheat stem rust, can be carried by wind across continents.

B). Rain-splashes

• Mechanism: Raindrops hitting infected plants or soil dislodge and disperse pathogens, splashing them onto nearby plants.
• Impact: This method is particularly effective for spreading bacteria and fungi that reside on plant surfaces or in the soil.
• Example: Bacterial pathogens like Xanthomonas and fungal pathogens like Colletotrichum (causing anthracnose) are often spread through rain-splashes.

C). Wind-blown rain

• Mechanism: Rain combined with wind carries splashed droplets further than rain alone, enhancing the dispersal of pathogens.
• Impact: This increases the range of contamination, allowing pathogens to reach plants that would otherwise be unaffected.
• Example: Wind-blown rain can spread fungal spores of Phytophthora infestans, the cause of late blight in potatoes.

D). Insects

• Mechanism: Insects act as vectors, transferring pathogens as they feed on plants or move between them. They can carry bacteria and fungi on their bodies or in their digestive systems.
• Impact: Insects create entry points for pathogens by causing wounds or feeding damage.
• Example: Beetles spread the fungus Ophiostoma ulmi, which causes Dutch elm disease, while aphids transmit bacterial pathogens like Erwinia amylovora, the cause of fire blight.

E). Irrigation or flooding

• Mechanism: Contaminated water used for irrigation or flooding can carry pathogens from one area to another.
• Impact: Waterborne pathogens can infect roots, stems, or leaves, leading to widespread disease outbreaks.
• Example: Pythium and Phytophthora species, which cause root rot, are often spread through contaminated irrigation water.

F).  Run-off

• Mechanism: Water running over the soil surface carries soil-borne pathogens to new locations.
• Impact: This can introduce pathogens into previously unaffected fields or areas.
• Example: Soil-borne fungi like Fusarium and bacteria like Ralstonia solanacearum can be spread through run-off.

G). Contaminated tools

• Mechanism: Tools such as pruning shears, hoes, or tractors can transfer pathogens if not properly sanitized between uses.
• Impact: This is a common way for pathogens to spread within and between fields.
• Example: Bacterial canker in tomatoes (Clavibacter michiganensis) can be spread through contaminated pruning tools.

H). Infected transplants

• Mechanism: Planting infected seedlings or transplants introduces pathogens into new areas.
• Impact: This can lead to the establishment of diseases in previously healthy fields.
• Example: Fungal pathogens like Verticillium dahliae and bacterial pathogens like Xanthomonas campestris are often spread through infected transplants.

I). Animals

• Mechanism: Animals, including birds, rodents, and livestock, can spread pathogens by moving infected plant material, soil, or seeds.
• Impact: This can introduce pathogens into new regions or fields.
• Example: Birds can spread fungal spores of Claviceps purpurea, the cause of ergot in cereals.

J).  Roots

• Mechanism: Pathogens can spread through interconnected root systems or root-to-root contact.
• Impact: This allows diseases to move underground, infecting neighboring plants.
• Example: Fungal pathogens like Armillaria mellea (honey fungus) and bacterial pathogens like Agrobacterium tumefaciens (crown gall) spread through root systems.

Infection Routes of Phytopathogenic bacteria in plants

The infection routes of plant pathogens, particularly bacteria and fungi, involve a series of steps that allow them to invade, colonize, and spread within host plants. These steps include entry into the plant, intercellular development, and movement within the plant’s vascular system. Below is an elaboration of these infection routes:

A). Entry: Through Wounds or Natural Openings

a). Wounds

• Mechanism: Pathogens often enter plants through physical injuries caused by mechanical damage (e.g., pruning, harvesting, or insect feeding), environmental stress (e.g., hail or wind), or human activities.
• Significance: Wounds provide direct access to the plant’s internal tissues, bypassing the plant’s natural barriers like the epidermis.
• Example: Bacterial pathogens like Pseudomonas syringaeand fungal pathogens like Botrytis cinerea (gray mold) often exploit wounds to initiate infections.

b). Natural Openings

• Stomata
• Mechanism: Stomata are microscopic pores on leaf surfaces that regulate gas exchange. Pathogens can enter through these openings, especially when they are open during the day.
• Significance: Stomata are a common entry point for many foliar pathogens.
• Example: Xanthomonas campestris, the cause of black rot in crucifers, enters through stomata.
• Hydathodes
• Mechanism: Hydathodes are specialized pores at the edges of leaves that release water (guttation). Pathogens can enter through these structures, particularly under high humidity or wet conditions.
• Significance: Hydathodes provide a direct route to the plant’s vascular system.
• Example: Xanthomonas campestriscampestris and Erwinia amylovora (fire blight) often use hydathodes for entry.

B).  Intercellular Development: Cell Wall-Degrading Enzymes, Toxin Production, and Hormone Manipulation

a). Cell Wall-Degrading Enzymes

• Mechanism: Pathogens produce enzymes like cellulases, pectinases, and proteases to break down the plant cell wall and middle lamella, facilitating tissue invasion.
• Significance: These enzymes allow pathogens to spread between plant cells and access nutrients.
• Example: Erwinia carotovora, a soft rot pathogen, produces pectinases that macerate plant tissues.

b). Toxin Production

• Mechanism: Pathogens produce toxins that kill or damage plant cells, creating a favorable environment for colonization.
• Significance: Toxins disrupt cellular functions, suppress plant defenses, and cause disease symptoms like necrosis and wilting.
• Example: Pseudomonas syringaeproduces syringomycin, a toxin that damages plant cell membranes.

c). Hormone Manipulation

• Mechanism: Pathogens manipulate plant hormones like auxins, cytokinins, and gibberellins to alter plant growth and physiology.
• Significance: Hormone manipulation can lead to symptoms like gall formation, stunting, or excessive growth.
• Example: Agrobacterium tumefacienscauses crown gall by transferring genes that induce auxin and cytokinin overproduction in the plant.

C). Movement in the Vascular System: Tracheobacteriosis and Vascular Pathogens

• Mechanism: Some pathogens, particularly bacteria, invade the plant’s vascular system (xylem or phloem) and spread systemically.
• Significance: Vascular colonization allows pathogens to move throughout the plant, causing widespread damage and systemic symptoms like wilting, yellowing, and stunting.
• Example

• Erwinia tracheiphila: This bacterium causes tracheobacteriosis (bacterial wilt) in cucurbits (e.g., cucumbers and melons). It enters through wounds or insect feeding sites, colonizes the xylem, and blocks water transport, leading to wilting and plant death.
• Other Examples: Ralstonia solanacearum(causing bacterial wilt in tomatoes and potatoes) and Xylella fastidiosa (causing Pierce’s disease in grapes) are also vascular pathogens.

Disease caused by Phytopathogenic Bacteria in Plants

Bacterial diseases in plants manifest through a wide range of symptoms, depending on the specific pathogen involved and the host plant. These symptoms are often distinct and can help in diagnosing the disease. Below is an elaboration of the symptoms caused by different bacterial pathogens:

A). Agrobacterium

• Crown Gall:Characterized by the formation of large, tumor-like growths (galls) at the base of the stem or crown of the plant. These galls disrupt the flow of water and nutrients.
• Twig Gall and Cane Gall: Similar tumorous growths appear on twigs and canes, often leading to stunted growth and dieback.
• Hairy Root: Abnormal proliferation of roots, giving them a hairy appearance. This is caused by the insertion of bacterial genes into the plant genome.
• Example:Agrobacterium tumefaciens is the primary species responsible for these symptoms.

B). Clavibacter

• Potato Ring Rot: Causes vascular discoloration and ring-shaped rot in potato tubers, leading to yield loss.
• Tomato Canker and Wilt: Results in wilting, cankers on stems, and eventual plant death.
• Fruit Spot: Small, necrotic spots on fruits, reducing their market value.
• Fasciation: Abnormal flattening and elongation of stems, giving them a ribbon-like appearance.
• Example: Clavibacter michiganensis subsp. sepedonicus causes potato ring rot, while Clavibacter michiganensis subsp. michiganensis causes tomato canker.

c). Erwinia

• Blight: Rapid browning and death of plant tissues, often seen in leaves and stems.
• Wilt: Blockage of the vascular system leads to wilting and eventual death of the plant.
• Soft Rot: Breakdown of plant tissues, resulting in a soft, mushy consistency and a foul odor.
• Example: Erwinia amylovora causes fire blight in apples and pears, while Erwinia carotovora causes soft rot in a variety of vegetables.

D). Pseudomonas

• Leaf Spots: Small, water-soaked lesions that later turn necrotic, often surrounded by a yellow halo.
• Galls: Tumor-like growths on stems and leaves.
• Banana Wilt: Wilting and yellowing of banana plants, leading to plant death.
• Canker: Sunken, necrotic lesions on stems and branches.
• Example: Pseudomonas syringae causes leaf spots in a wide range of plants, while Pseudomonas solanacearum (now classified as Ralstonia solanacearum) causes bacterial wilt.

E). Xanthomonas

• Leaf Spots: Small, angular, water-soaked spots that may coalesce and cause extensive leaf damage.
• Cutting Rot: Rotting of cuttings, leading to poor establishment and growth.
• Black Venation: Darkening of leaf veins, often leading to leaf death.
• Bulb Rot: Rotting of bulbs, reducing their storage life and market value.
• Citrus Canker: Raised, corky lesions on leaves, stems, and fruits, leading to defoliation and fruit drop.
• Walnut Blight: Dark, sunken lesions on walnut fruits and leaves, reducing yield and quality.
• Example: Xanthomonas campestris causes black rot in crucifers, while Xanthomonas axonopodis causes citrus canker.

F). Streptomyces

• Potato Scab: Rough, corky lesions on potato tubers, reducing their marketability.
• Soil Rot of Sweet Potato: Lesions and rot on sweet potato roots, leading to yield loss.
• Example: Streptomyces scabies is the primary species responsible for potato scab.

7. Rhizobium:

• Root Nodules: Formation of nodules on the roots of leguminous plants, which house nitrogen-fixing bacteria.
• Benefit to the Plant: The bacteria in the nodules convert atmospheric nitrogen into a form that the plant can use, enhancing growth and reducing the need for nitrogen fertilizers.
• Example: Rhizobium species form symbiotic relationships with legumes like beans, peas, and clover.

The lifecycle of plant pathogens and Influencing Factors

The lifecycle of plant pathogens is a complex process that involves several distinct phases, each influenced by environmental conditions, host availability, and pathogen biology. Understanding these phases is crucial for managing and controlling plant diseases. Below is an elaboration of the lifecycle phases of pathogens and the factors that influence them:

A). Absent Status: Introduction from Long Distances

a). Mechanism

Pathogens can be introduced into new areas through various means, such as the movement of infected plant material, seeds, or soil, or by natural dispersal agents like wind, water, or insects.

b). Significance

The introduction of pathogens to new regions can lead to the establishment of diseases in previously unaffected areas, posing significant risks to agriculture and ecosystems.

c). Example

The introduction of Phytophthora infestans, the cause of late blight in potatoes, to Europe in the 19th century led to the Irish Potato Famine.

B). Survival and Dispersal: Resting or Growing Populations

a). Resting Populations

• Mechanism:Pathogens can survive in a dormant state, often as spores, sclerotia, or other resistant structures, during unfavorable conditions.
• Significance:This allows pathogens to persist in the environment until conditions become favorable for growth and infection.
• Example:Fungal pathogens like Fusarium and Sclerotinia form sclerotia that survive in soil for extended periods.

b). Growing Populations

• Mechanism:Pathogens can exist as active, growing populations on plant surfaces (epiphytically) or within plant tissues (endophytically) without causing immediate symptoms.
• Significance:This phase allows pathogens to build up their populations and prepare for the pathogenic phase.
• Example:Pseudomonas syringae can live epiphytically on leaf surfaces before causing disease.

c). Dispersal by Seeds

• Mechanism:Pathogens can be carried on or within seeds, allowing them to spread to new plants and areas.
• Significance:Seed-borne pathogens can introduce diseases into new fields or regions.
• Example:Xanthomonas campestris campestris, the cause of black rot in crucifers, can be seed-borne.

C). Pathogenic Phase: Growth and Multiplication within the Host

a). Mechanism

Once conditions are favorable, pathogens infect the host plant, grow, and multiply, leading to the development of disease symptoms.

b). Significance

This phase is critical for the pathogen’s lifecycle, as it involves the colonization of host tissues and the production of structures for further dispersal.

c). Symptoms

Symptoms can include leaf spots, wilting, galls, rot, and other visible signs of disease.

d). Example

Erwinia amylovora causes fire blight in apples and pears by colonizing the vascular system and producing toxins that lead to wilting and necrosis.

D). Survival Phase: Declining Populations or Saprophytic Existence

a). Declining Populations

• Mechanism:After causing disease, pathogen populations may decline due to host resistance, environmental changes, or the depletion of resources.
• Significance:This phase represents a transition back to a resting or survival state.
• Example:Bacterial populations of Ralstonia solanacearum may decline in the absence of a susceptible host.

b). Saprophytic Existence

• Mechanism:Some pathogens can survive as saprophytes, feeding on dead or decaying organic matter in the soil or plant debris.
• Significance:This allows pathogens to persist in the environment and serve as a source of inoculum for future infections.
• Example:Fusarium oxysporum can survive saprophytically in soil, infecting new hosts when conditions are favorable.

Influencing Factors of the Lifecycle phase of plant pathogens

The lifecycle phases of plant pathogens are influenced by a variety of factors that determine their survival, dispersal, infection, and overall impact on crops. These factors can be broadly categorized into environmental conditions, host availability, cultural practices, and biological controls. Below is an elaboration of these influencing factors:

A). Environmental Conditions

a). Temperature

• Impact:Temperature affects the growth, reproduction, and survival of pathogens. Each pathogen has an optimal temperature range for activity.
• Example:Phytophthora infestans, the cause of late blight in potatoes, thrives in cool, wet conditions, while Xanthomonas species prefer warmer temperatures.
• Significance:Extreme temperatures can either inhibit or promote pathogen activity, influencing disease outbreaks.

b). Humidity

• Impact:High humidity levels favor the growth and dispersal of many pathogens, particularly fungi and bacteria, by providing moisture for spore germination and bacterial multiplication.
• Example:Powdery mildews and downy mildews spread rapidly in humid conditions.
• Significance:Managing humidity through proper spacing and ventilation can reduce disease incidence.

c). Rainfall

• Impact:Rain can disperse pathogens through splashing, runoff, or wind-blown rain. It also creates moist conditions that favor infection.
• Example:Bacterial pathogens like Pseudomonas syringae and fungal pathogens like Colletotrichum are often spread by rain-splashes.
• Significance:Excessive rainfall can lead to waterlogged soils, promoting root rot diseases caused by Pythium and Phytophthora.

B). Host Availability

a). Susceptible Hosts

• Impact:The presence of susceptible host plants is essential for pathogens to complete their lifecycle and cause disease. Without a suitable host, pathogens cannot thrive.
• Example:Clavibacter michiganensis causes tomato canker only in tomato plants.
• Significance:Crop diversity and the use of resistant varieties can reduce the availability of susceptible hosts.

b). Host Density

• Impact:High plant density can create microclimates that favor pathogen spread and increase the likelihood of disease transmission.
• Example:Dense planting of wheat can facilitate the spread of rust fungi like Puccinia graminis.
• Significance:Proper spacing and planting density can minimize disease spread.

C). Cultural Practices

a). Crop Rotation

• Impact:Rotating crops with non-host plants disrupts the lifecycle of pathogens that are specific to certain crops, reducing their populations in the soil.
• Example:Rotating potatoes with legumes can reduce the incidence of Verticillium
• Significance:Crop rotation is a sustainable practice that reduces reliance on chemical controls.

b). Sanitation

• Impact:Removing infected plant debris, weeds, and volunteer plants eliminates sources of inoculum, reducing the chances of disease recurrence.
• Example:Burning or burying infected tomato plants can prevent the spread of Alternaria solani, the cause of early blight.
• Significance:Sanitation is a cost-effective way to manage diseases.

c). Irrigation Practices

• Impact:Overhead irrigation can create moist conditions that favor pathogen growth, while drip irrigation minimizes leaf wetness and reduces disease spread.
• Example:Overhead irrigation can promote the spread of Pseudomonas syringae in beans.
• Significance:Proper irrigation management can significantly reduce disease incidence.

D). Biological Controls

a). Antagonistic Microorganisms

• Impact:Beneficial microorganisms, such as Trichoderma fungi and Bacillus bacteria, can suppress pathogen populations through competition, antibiosis, or parasitism.
• Example:Trichoderma harzianum is used to control soil-borne pathogens like Fusarium and Rhizoctonia.
• Significance:Biological controls are environmentally friendly and reduce the need for chemical pesticides.

b). Predators and Parasites:

• Impact:Insects, nematodes, and other organisms that prey on or parasitize pathogens can help reduce their populations.
• Example:Predatory mites can control fungal pathogens like powdery mildew.
• Significance:Integrating natural enemies into pest management programs enhances ecosystem balance.

c). Induced Resistance

• Impact:Some beneficial microorganisms or chemical elicitors can induce systemic resistance in plants, making them less susceptible to pathogens.
• Example:Pseudomonas fluorescens can induce resistance against Fusarium wilt in tomatoes.
• Significance:Induced resistance provides long-term protection against a wide range of pathogens.

Predisposing Factors

Predisposing factors are environmental and host-related conditions that influence the survival, activity, and pathogenicity of plant pathogens. These factors create favorable conditions for pathogens to infect and colonize host plants, ultimately leading to disease development. Below is an elaboration of the key predisposing factors:

A). Temperature, Free Water, and Irradiation:

a). Temperature

• Impact:Temperature directly affects the growth, reproduction, and metabolic activity of pathogens. Each pathogen has an optimal temperature range for infection and development.
• Example:Phytophthora infestans, the cause of late blight in potatoes, thrives in cool, moist conditions (10–20°C), while Xanthomonas species prefer warmer temperatures (25–30°C).
• Significance:Extreme temperatures (too high or too low) can inhibit pathogen activity, while moderate temperatures within the optimal range promote disease.

b). Free Water

• Impact:Moisture is essential for the germination of fungal spores, the multiplication of bacteria, and the dispersal of pathogens. Free water on plant surfaces facilitates infection.
• Example:Prolonged leaf wetness from rain or dew favors the spread of Pseudomonas syringae (bacterial speck) and Botrytis cinerea (gray mold).
• Significance:Managing irrigation and reducing leaf wetness can minimize disease outbreaks.

c). Irradiation (Light)

• Impact:Ultraviolet (UV) radiation from sunlight can inhibit pathogen survival by damaging their DNA. However, some pathogens are adapted to tolerate or avoid UV exposure.
• Example:Fungal spores exposed to direct sunlight may be inactivated, reducing their ability to cause infection.
• Significance:Shade and humidity can create microclimates that protect pathogens from UV radiation, promoting disease.

B). Leaking Nutrients, Host Species, and Resistance/Compatibility

a). Leaking Nutrients

• Impact:Nutrients leaking from plant tissues, such as sugars and amino acids, can attract and support the growth of pathogens.
• Example:Wounds or natural openings like stomata and hydathodes often exude nutrients that facilitate bacterial colonization.
• Significance:Minimizing plant stress and damage can reduce nutrient leakage and pathogen attraction.

b). Host Species

• Impact:Pathogens are often host-specific, meaning they can only infect certain plant species or varieties.
• Example:Xanthomonas campestris campestris infects crucifers like cabbage and broccoli but not non-cruciferous plants.
• Significance:Crop rotation and diversification can reduce the availability of susceptible hosts.

c). Resistance/Compatibility

• Impact:The genetic compatibility between a pathogen and its host determines the success of infection. Resistant plants have mechanisms to block pathogen entry or growth.
• Example:Resistant tomato varieties can prevent infection by Fusarium oxysporum, the cause of Fusarium wilt.
• Significance:Breeding and using resistant varieties is a key strategy for disease management.

C). Wounds, Tissue pH, and Internal Nutrients

a). Wounds

• Impact:Physical injuries from pruning, insect feeding, or environmental stress provide entry points for pathogens.
• Example:Erwinia amylovora, the cause of fire blight, enters apple and pear trees through floral wounds or pruning cuts.
• Significance:Proper handling and protection of plants can minimize wounding and reduce infection risks.

b). Tissue pH

• Impact:The pH of plant tissues can influence pathogen activity. Some pathogens thrive in acidic conditions, while others prefer alkaline environments.
• Example:Streptomyces scabies, the cause of potato scab, prefers alkaline soils.
• Significance:Adjusting soil pH or tissue conditions can help manage certain diseases.

c). Internal Nutrients

• Impact:The availability of nutrients within

Control of Phytopathogenic Bacteria

Effective control strategies for managing plant diseases involve a combination of preventive, cultural, biological, and chemical measures. These strategies aim to reduce the introduction, spread, and impact of pathogens, ensuring healthy crop growth and sustainable agricultural practices. Below is an elaboration of the key control strategies:

A). Pathogen-Free Plant Material

a). Use Certified Disease-Free Seeds and Plants

• Mechanism:Starting with certified, disease-free seeds and plants ensures that pathogens are not introduced into the field or greenhouse.
• Significance:This is a critical first step in preventing the establishment of diseases.
• Example:Using certified potato seed tubers free of Phytophthora infestans (late blight) reduces the risk of disease outbreaks.

B). Elimination of Infected Plants and Debris

a). Remove and Destroy Infected Plant Material:

• Mechanism:Infected plants and debris serve as sources of inoculum for future infections. Removing and destroying them reduces pathogen populations.
• Significance:This practice interrupts the disease cycle and prevents further spread.
• Example:Burning or burying tomato plants infected with Alternaria solani (early blight) prevents the spread of spores.

C). Cleaning Tools and Hands

a). Sanitize Equipment to Prevent Spread

• Mechanism:Tools, equipment, and hands can carry pathogens from infected to healthy plants. Regular sanitation minimizes this risk.
• Significance:Proper sanitation is especially important in high-density planting or greenhouse environments.
• Example:Disinfecting pruning shears with a 10% bleach solution prevents the spread of Pseudomonas syringae (bacterial canker) in stone fruit trees.

D). Avoid High Humidity and Over-Watering

a). Manage Irrigation to Reduce Favorable Conditions for Pathogens:

• Mechanism:High humidity and excessive moisture create ideal conditions for pathogen growth and dispersal. Proper irrigation practices reduce leaf wetness and soil saturation.
• Significance:This strategy is particularly effective against fungal and bacterial pathogens that thrive in moist environments.
• Example:Using drip irrigation instead of overhead irrigation reduces the spread of Botrytis cinerea (gray mold) in strawberries.

E). Soil Disinfection

a). Treat Soil to Eliminate Pathogens

• Mechanism:Soil-borne pathogens can persist in the soil for years. Disinfection methods, such as solarization, fumigation, or steam treatment, reduce pathogen populations.
• Significance:This is especially important in greenhouse and high-value crop production.
• Example:Solarization (covering soil with plastic to trap heat) can control Verticillium dahliae in tomato fields.

F). Biological Control

a). Use Beneficial Organisms to Suppress Pathogens

• Mechanism:Beneficial microorganisms, such as Trichoderma fungi or Bacillus bacteria, compete with or antagonize pathogens, reducing their populations.
• Significance:Biological control is an eco-friendly alternative to chemical treatments.
• Example:Trichoderma harzianum is used to suppress Fusarium and Rhizoctonia in various crops.

G). Antibiotics

a). In Some Cases, Like Erwinia amylovora, Antibiotics May Be Used

• Mechanism:Antibiotics can directly kill or inhibit the growth of bacterial pathogens.
• Significance:This is a targeted approach for managing bacterial diseases, though it is used sparingly to avoid resistance development.
• Example:Streptomycin is used to control Erwinia amylovora (fire blight) in apple and pear orchards.

H). Crop Rotation

a). Rotate Crops to Break Disease Cycles

• Mechanism:Planting non-host crops in rotation with susceptible crops disrupts the lifecycle of pathogens that rely on specific hosts.
• Significance:This reduces pathogen populations in the soil over time.
• Example:Rotating potatoes with legumes reduces the incidence of Verticillium

I). Resistant Plants

a). Use Plant Varieties with Resistance to Specific Pathogens

• Mechanism:Resistant varieties have genetic traits that prevent or limit pathogen infection and colonization.
• Significance:This is a sustainable and cost-effective strategy for disease management.
• Example:Tomato varieties resistant to Fusarium oxysporum (Fusarium wilt) are widely used in commercial production.

Diagnosis of Phytopathogenic Bacteria in Plants

Accurate and reliable diagnosis of phytopathogenic bacteria is crucial for effective disease management in plants. The following approaches are commonly used:

1. Description of Symptoms: Observing and documenting visible disease symptoms, such as leaf spots, wilting, galls, or discoloration, helps in preliminary identification.
2. Isolation: Pathogens are isolated from infected plant tissues using selective or semi-selective growth media to obtain pure bacterial cultures.
3. Physiological and Biochemical Tests: Identifying bacteria based on their physiological traits, such as pigmentation, and biochemical activities, such as enzyme production or sugar utilization.
4. Serological Tests: Methods like ELISA (Enzyme-Linked Immunosorbent Assay) detect bacterial antigens with high specificity, aiding in pathogen identification.
5. Fluorescence Microscopy: Fluorescent dyes or markers are used to visualize bacteria directly on infected plant tissues.
6. Nucleic Acid Analysis: Advanced molecular techniques like PCR (Polymerase Chain Reaction), RFLP (Restriction Fragment Length Polymorphism), and qRT-PCR (quantitative Reverse Transcription PCR) provide precise identification by detecting bacterial DNA or RNA.
7. Fatty Acid Profiles: Analysis of bacterial fatty acid composition helps distinguish species or strains.

Koch’s Postulates

To establish a microorganism as the causative agent of a specific plant disease, the following steps are applied:

1. The microorganism must be consistently present in all organisms showing disease symptoms.
2. It must be isolated from the diseased organism and grown in pure culture.
3. The pure culture, when introduced into a healthy host, should reproduce the same disease symptoms.
4. The microorganism must be re-isolated from the experimentally infected host and shown to be identical to the original isolate.

Important Concepts in Phytobacteriology

Understanding the interaction between phytopathogenic bacteria and plants is critical for disease prevention and management. Key concepts include:

• Access to Plants: Bacteria gain entry through wounds, stomata, hydathodes, or other natural openings.
• Manipulation of Plant Cells: Pathogens inject DNA or effector proteins into plant cells or produce toxins to manipulate host functions for their benefit.
• Plant Defense: Plants recognize bacterial effectors via receptors and trigger defense responses such as hypersensitive reactions or systemic acquired resistance.
• Insect Transmission: Some phytopathogenic bacteria, such as Xylella fastidiosa, are spread by insect vectors, complicating control efforts.
• Control Challenges: Managing phytopathogenic bacteria is challenging due to their persistence and diverse transmission modes. Effective strategies include exclusion, sanitation, crop rotation, and breeding resistant plant varieties.
